Technical Data for this product can be found by downloading the following file:

Call us on: 0044 (0)1684 311811

info@bullocktillage.co.uk

TINECUT CULTIVATOR PRODUCT INFORMATION

Working width 3 metres



Six hardox 20mm thick tines at 54cm spacing




24 560mm discs mounted on rubber shock absorbers mounted in two rows




Full width press steel packer (other packer options available)




Click on the images to enlarge:

Maintenance free disc bearings and legs are shear bolt protected. Wearing parts available from most UK parts suppliers






Maximum working depth of 45cm





Ability to fold outer disc units for narrow road transport




Category 2 and 3 linkage points

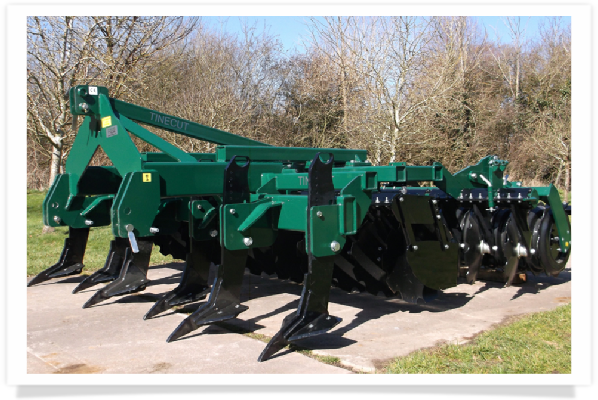

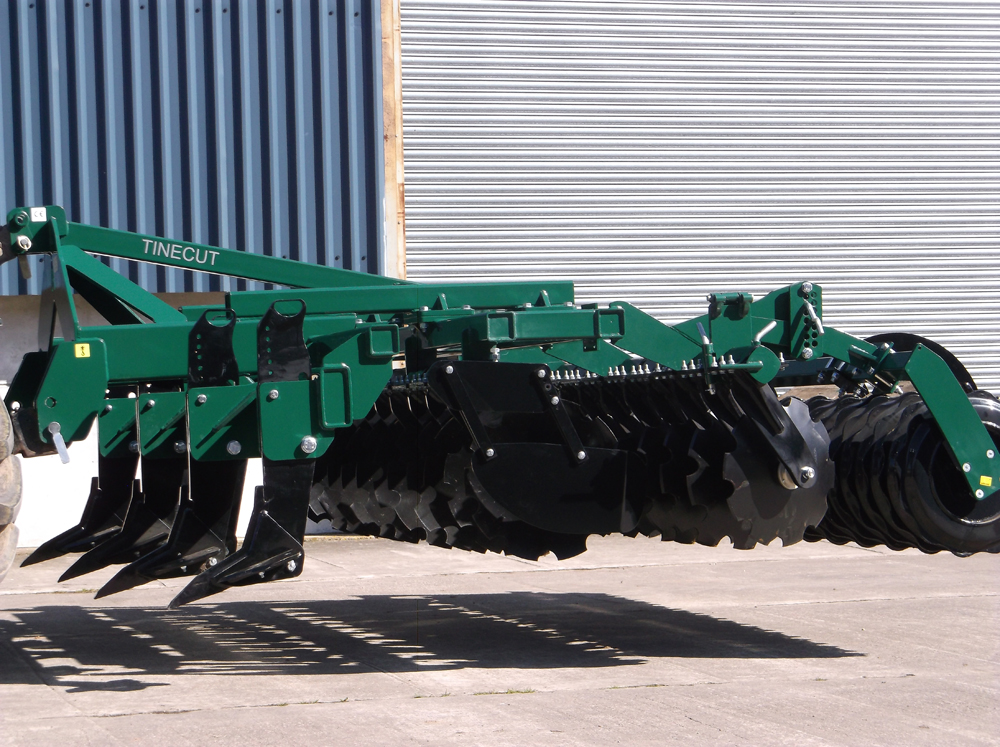

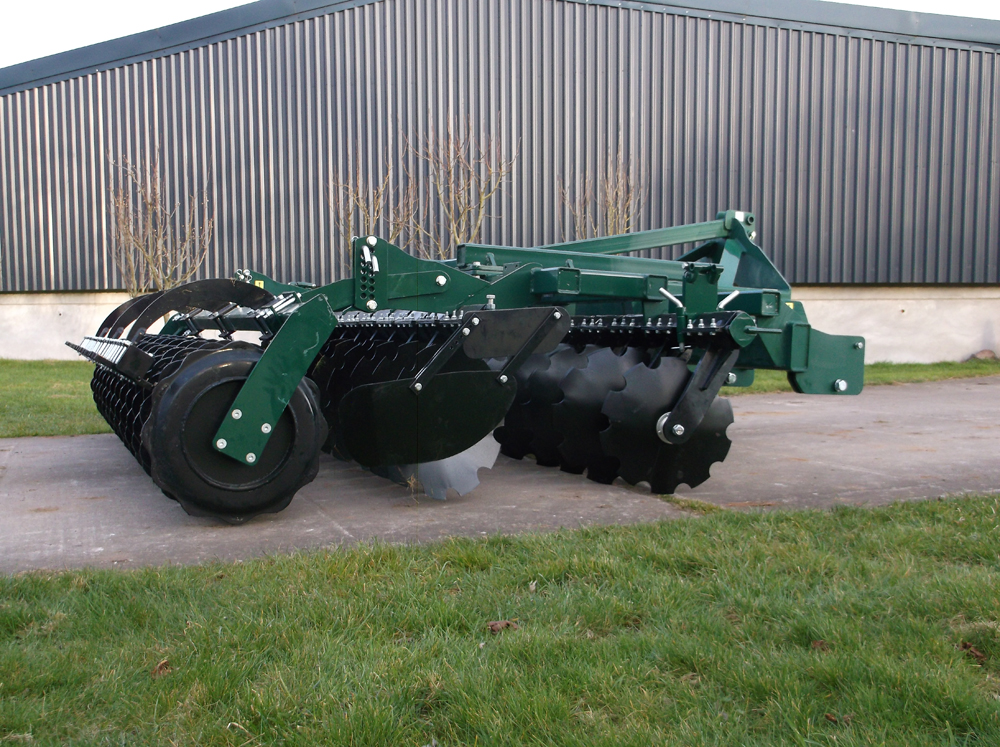

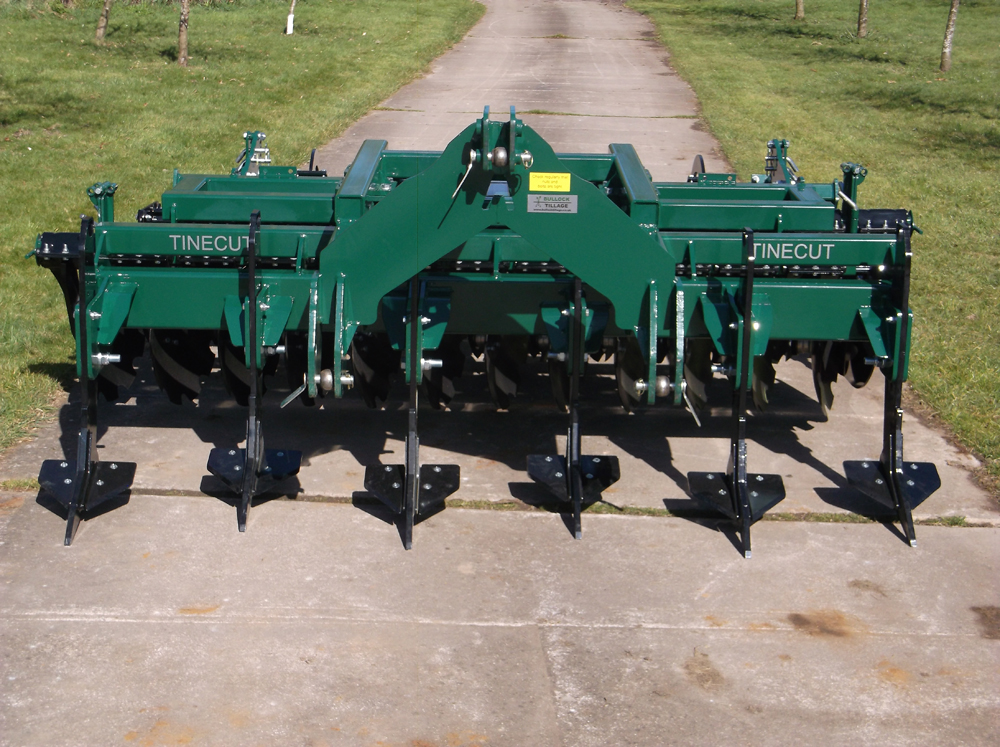

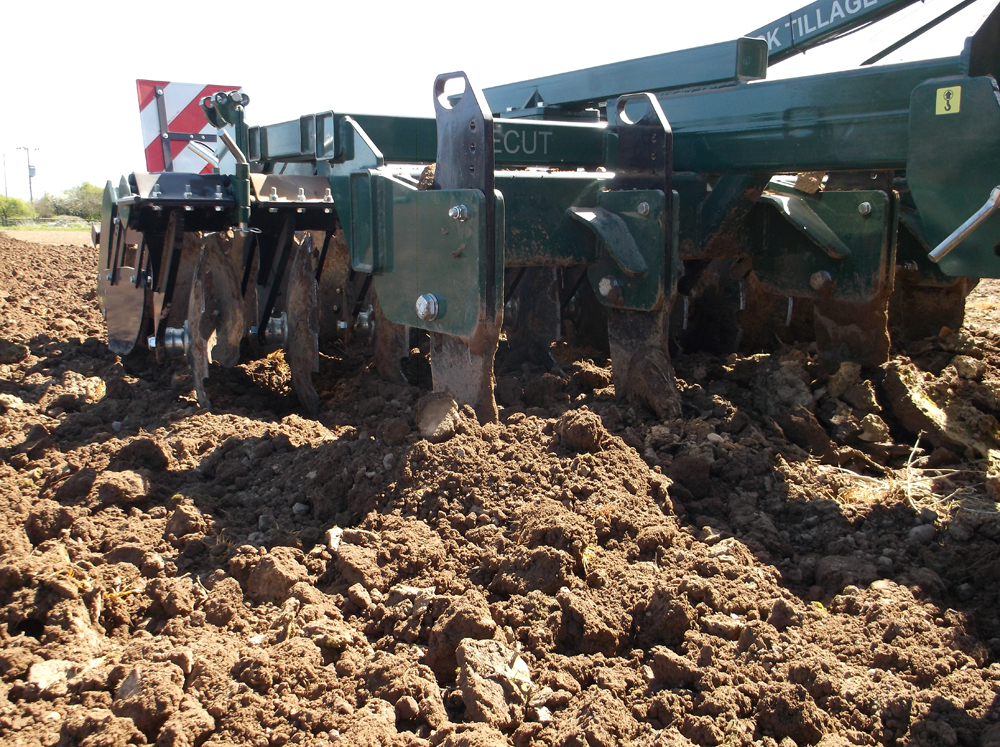

TINECUT CULTIVATOR

The Tinecut cultivator from BULLOCK TILLAGE is a universal machine with three different cultivation zones capable of producing a seed bed in one pass. Six leading hardbox subsoiler legs followed by 24 disc units and a press steel packer ensures maximum cultivation.


Where the soil does not require deep loosening quick and easy removal of the leading tines converts the Tinecut to a Disc Harrow for shallow reduced tillage.


The Tinecut is designed for flexibility and with multiple roles at an affordable price.


Weight 2,200kg, Power requirement 180 - 250 hp








Prices start from £9800 + Delivery + VAT


Contact us for more information


 Manual

Tinecut Operator Manual 2016.pdf
